4C200E, V-Belt Pulley

4C200E, QD4C20

Product Details for 4C200E

Comparable to: QD4C20.0, 4C200.E, 20.0-4C-E, 4C20.0, 4/C2000E

Click to Enlarge

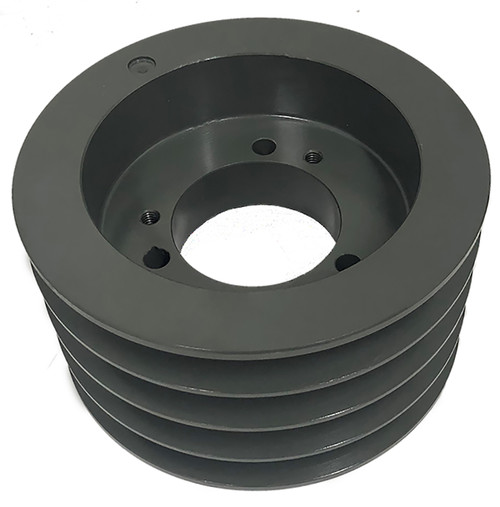

4C200E, V-Belt Pulley, Cast Iron

Specifications

Product Number 4C200E
Material Cast Iron
Bore Type QD
Outside Diameter (in) 20.400
Face Width (in) 4.250
Min. Bore (in) 0.875
Bushing E
Max. Bore (in) 3.500
L (in) 2.750
MOQ 1
Weight (lb) 76.90
Part Number Cross Reference QD4C20.0, 4C200.E, 20.0-4C-E, 4C20.0, 4/C2000E
Grooves 4
Set Screw Quantity 0
