50-3M09-6A4, Timing Pulley

50-3M09-6A4 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 50-3M09-6A4

Comparable to: A 6A23-050NF0910, A6A23-050NF0910, P50-3M-09AL, 78820041, PT050F10L09N

Click to Enlarge

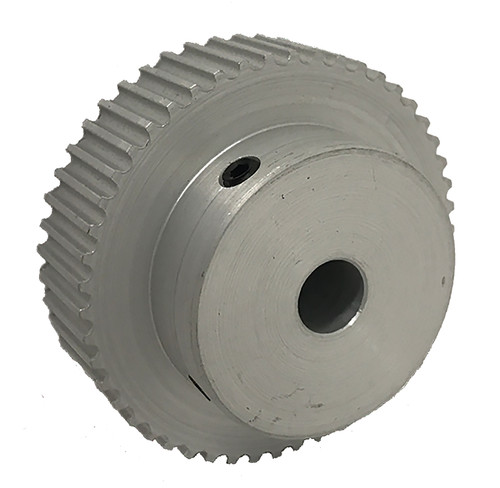

50-3M09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50-3M09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-3M09-6A4
Teeth 50
Tooth Style HTD 3mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.850
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference A 6A23-050NF0910, A6A23-050NF0910, P50-3M-09AL, 78820041, PT050F10L09N
Set Screw Quantity 2
