50-8MX36-2012, Timing Pulley

50-8MX36-2012 - Cast Iron Powerhouse® MX Pulleys

Product Details for 50-8MX36-2012

Comparable to: 8MX-50S-36, 77183050, TB 8M-50S-36, 2765667, B8MCS-50-36, 50G-8M-36-2012, 20296084, 481971, 8MPC50S36, GTR-50G-8M-36

Click to Enlarge

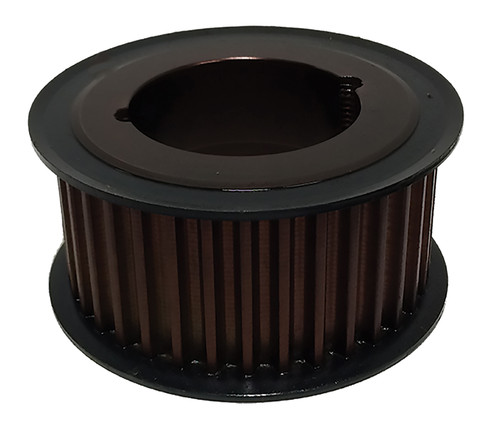

50-8MX36-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 50-8MX36-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-8MX36-2012
Teeth 50
Tooth Style 8MX
For Belt Width (mm) 36
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.950
Flange Diameter (in) 5.320
Face Width (in) 1.859
Overall Length (in) 1.859
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 5.02
Part Number Cross Reference 8MX-50S-36, 77183050, TB 8M-50S-36, 2765667, B8MCS-50-36, 50G-8M-36-2012, 20296084, 481971, 8MPC50S36, GTR-50G-8M-36
