50-8P20-2012, Timing Pulley

50-8P20-2012 - Cast Iron Powerhouse® Pulleys

50-8P20-2012

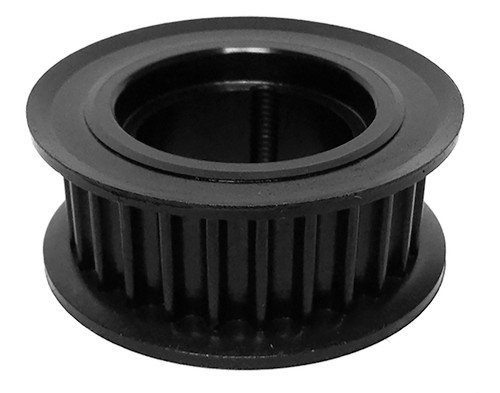

Click to Enlarge

50-8P20-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 50-8P20-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-8P20-2012
Teeth 50
Tooth Style 8P
For Belt Width (mm) 20
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.959
Flange Diameter (in) 5.320
Face Width (in) 1.130
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 2012
P.D. (mm) 127.00
O.D. (mm) 126.00
MOQ 1
Weight (lb) 4.28
Part Number Cross Reference P50-8MGT-20, B508M20TL, 50-8P20-2012
