56-5P25-1610, Timing Pulley

56-5P25-1610 - Cast Iron Powerhouse® Pulleys

56-5P25-1610

Click to Enlarge

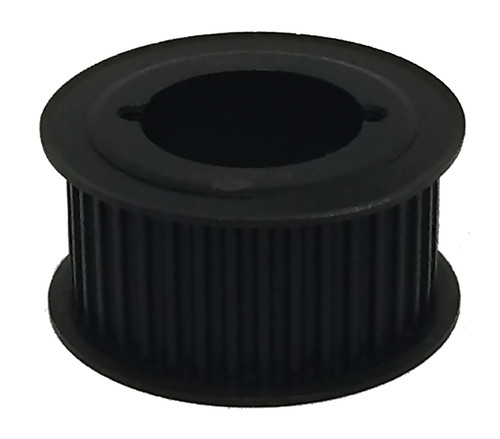

56-5P25-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-5P25-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-5P25-1610
Teeth 56
Tooth Style 5P
For Belt Width (mm) 25
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.464
Flange Diameter (in) 3.800
Face Width (in) 1.280
Overall Length (in) 1.280
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1610
P.D. (mm) 89.00
O.D. (mm) 88.00
MOQ 1
Weight (lb) 1.65
Part Number Cross Reference P56-5MGT-25, 56-5P25-1610
