60-2P03-6FA3 Powerhouse™ Pulleys

60-2P03-6FA3, A 6A51-060DF0308

Product Details for 60-2P03-6FA3

Comparable to: 60-2P03-6FA3, A 6A51-060DF0308,

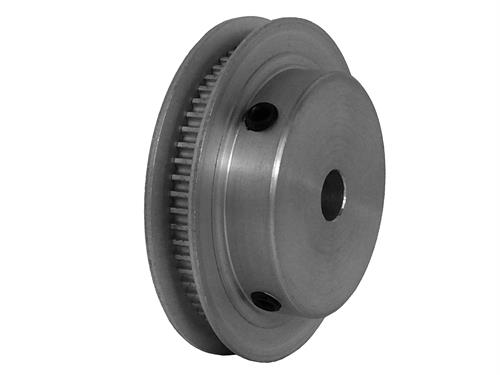

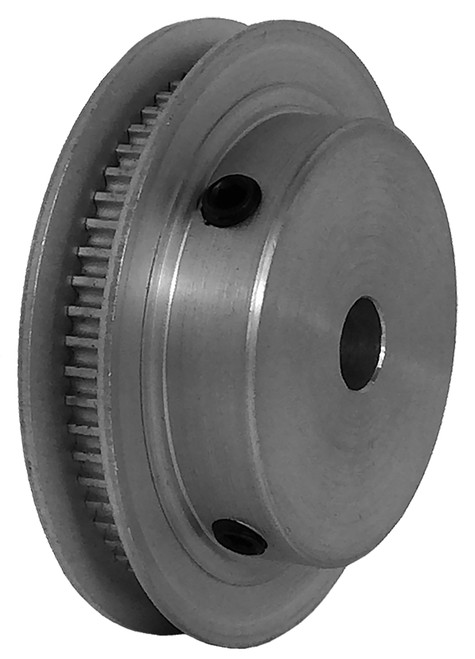

60-2P03-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 60-2P03-6FA3
Teeth 60
Tooth Style GT 2mm
For Belt Width (mm) 3.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.484
Flange Diameter (in) 1.730
Face Width (in) 0.275
Overall Length (in) 0.531
Hub Diameter (in) 1.222
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
Weight (lb) 0.15
List Price (1-9 Qty.) (USD) 14.59
Discount Price (10-24 Qty.) (USD) 13.86
Discount Price (25-49 Qty.) (USD) 12.04
Discount Price (50-99 Qty.) (USD) 9.85
Discount Price (100-249 Qty.) (USD) 9.12
Part Number Cross Reference 60-2P03-6FA3, A 6A51-060DF0308,

Documentation

Download Catalog 2015_BBMAN_CATALOG_122.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 60-2P03-6FA3_REACH_cert
RoHS Certification 60-2P03-6FA3_RoHS_cert
