60-2P06-6FA3, Timing Pulley

60-2P06-6FA3 - Aluminum Powerhouse® Pulleys

60-2P06-6FA3

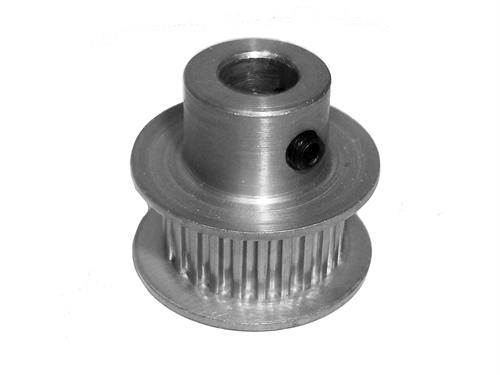

Click to Enlarge

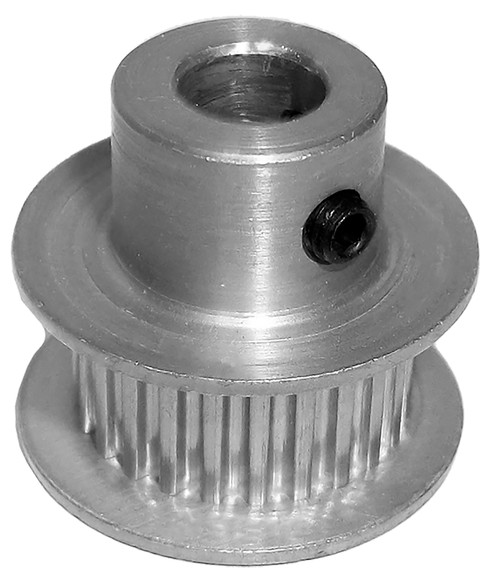

60-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-2P06-6FA3
Teeth 60
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.484
Flange Diameter (in) 1.700
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 1.222
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 38.00
O.D. (mm) 37.70
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A51-060DF0608, A6A51-060DF0608, 2MR-60S-06, TP2A3W6-60, 60-2GT06-1A X 1/4, 60-2P06-6FA3, 60-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-060DF0608, A6A51-060DF0608, 2MR-60S-06, TP2A3W6-60, 60-2GT06-1A X 1/4, 60-2P06-6FA3, 60-2P06-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
