60-3P09-6A4, Timing Pulley

60-3P09-6A4 - Aluminum Powerhouse® Pulleys

60-3P09-6A4

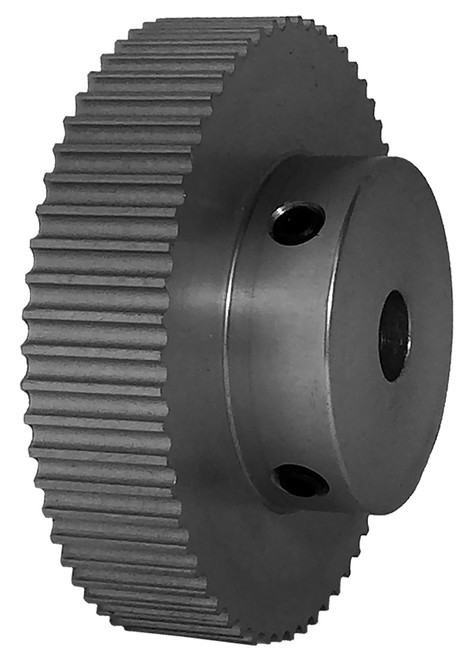

Click to Enlarge

60-3P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-3P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-3P09-6A4
Teeth 60
Tooth Style 3P
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.226
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 57.00
O.D. (mm) 56.50
MOQ 1
Weight (lb) 0.24
Part Number Cross Reference A 6A53-060NF0910, A6A53-060NF0910, 3MR-60S-09, TP3A3H9-60, 60-3GT09-2A X 5/16, 60-3P09-6A4
Set Screw Quantity 2
