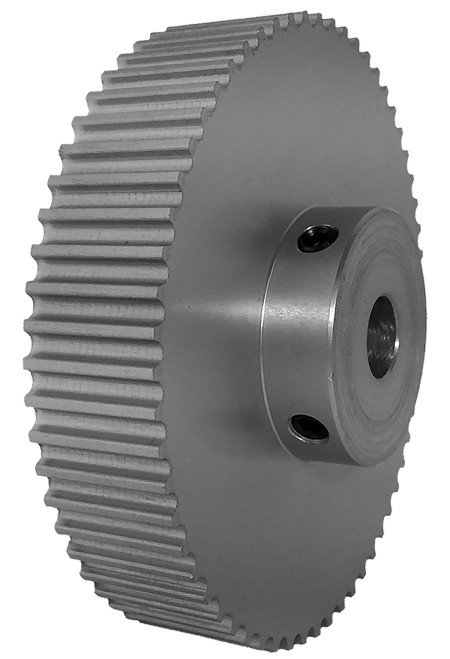

60-5M15M6A12, Timing Pulley

60-5M15M6A12

Click to Enlarge

60-5M15M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-5M15M6A12 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	60-5M15M6A12
Teeth	60
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore Description	12 mm Finished Bore
Bore (mm)	12.00
Pitch Diameter (in)	3.760
Outside Diameter (in)	3.715
Pulley Belt Width (mm)	15.00
Unit System	Metric
P.D. (mm)	96.00
O.D. (mm)	94.30
Face Width (mm)	19.80
Overall Length (mm)	30.10
Hub Diameter (mm)	38.10
MOQ	1
Weight (lb)	0.91
Part Number Cross Reference	A 6A25M060NF1512, A6A25M060NF1512, 60-5M15M6A12, 60-5M15M6A12
Set Screw Quantity	1
