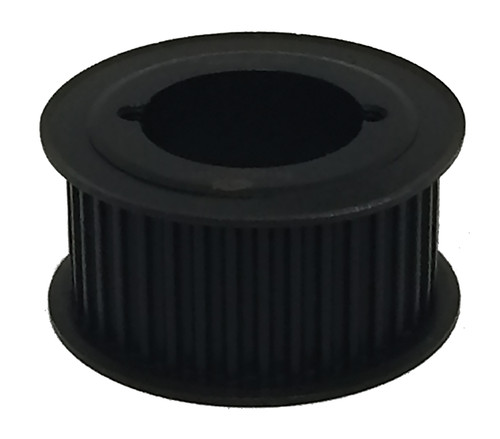

60-5P25-1610, Timing Pulley

60-5P25-1610 - Cast Iron Powerhouse® Pulleys

60-5P25-1610

Click to Enlarge

60-5P25-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 60-5P25-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-5P25-1610
Teeth 60
Tooth Style 5P
For Belt Width (mm) 25
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.760
Outside Diameter (in) 3.715
Flange Diameter (in) 4.044
Face Width (in) 1.280
Overall Length (in) 1.280
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1610
P.D. (mm) 96.00
O.D. (mm) 94.30
MOQ 1
Weight (lb) 2.80
Part Number Cross Reference P60-5MGT-25, 60-5P25-1610
