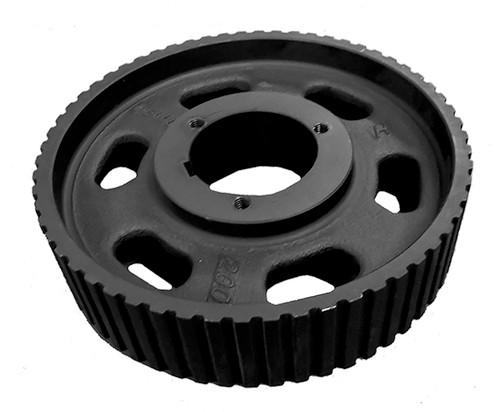

60HQ200, Timing Pulley

60HQ200 - Cast Iron Imperial Pitch Pulleys

60HQ200

Click to Enlarge

60HQ200, Timing Pulley, Cast Iron

Learn more about 60HQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60HQ200
Teeth 60
Tooth Style H
For Belt Width (in) 2.0000
Type A-3
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 9.549
Outside Diameter (in) 9.495
Face Width (in) 2.500
Overall Length (in) 3.063
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 243.00
O.D. (mm) 241.20
MOQ 1
Weight (lb) 19.11
Part Number Cross Reference 60HQ200, 60HQ200, 60HQ200
