60MP025-6FA3, Timing Pulley

60MP025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 60MP025-6FA3

Comparable to: A 6A16-060DF2508, A6A16-060DF2508, PB60MXL025, 78260160, PT060A08L04T, 60MXL025-1A X 1/4

Click to Enlarge

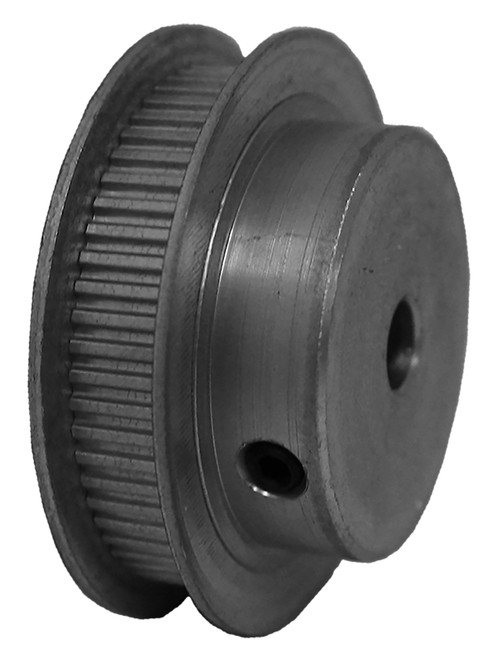

60MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60MP025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60MP025-6FA3
Teeth 60
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.730
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 1.222
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A16-060DF2508, A6A16-060DF2508, PB60MXL025, 78260160, PT060A08L04T, 60MXL025-1A X 1/4
Set Screw Quantity 2
