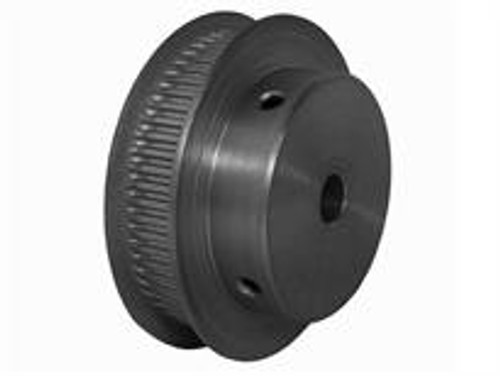

60MP025M6FA6, Timing Pulley

60MP025M6FA6

Click to Enlarge

60MP025M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60MP025M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	60MP025M6FA6
Teeth	60
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	1.528
Outside Diameter (in)	1.508
Flange Diameter (in)	1.730
Face Width (in)	0.405
Pulley Belt Width (mm)	7.20
Unit System	Metric
P.D. (mm)	39.00
O.D. (mm)	38.30
Flange Diameter (mm)	43.90
Face Width (mm)	10.30
Overall Length (mm)	18.30
Hub Diameter (mm)	31.00
MOQ	1
Weight (lb)	0.11
Part Number Cross Reference	A 6A16M060DF6006, A6A16M060DF6006, 60MP025M6FA6, 60MP025M6FA6
Set Screw Quantity	2
