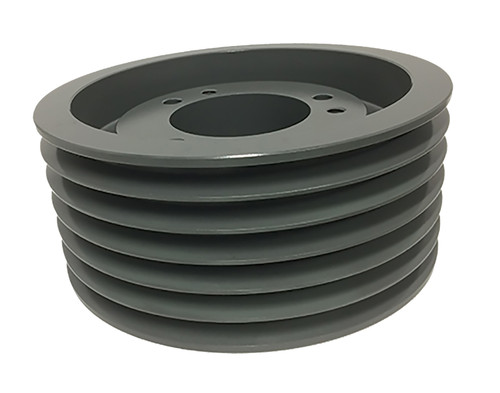

63V1060SF, V-Belt Pulley

63V1060SF, 3V1066, 6-3V1.06, 6/3V1060SF

63V1060SF

63V1060SF, V-Belt Pulley, Cast Iron

Learn more about 63V1060SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 63V1060SF
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 10.550
Outside Diameter (in) 10.600
Face Width (in) 2.719
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
E (in) 0.03125
L (in) 2.0625
M (in) 0.625
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 22.60
Part Number Cross Reference QD6/3V10.60, 6 3V 1060 SF, 63V1060SF, 6-3V10.60-SF SHEAVE, 3V1066, 63V10.6, 3V10.6-6-SF, 6/3V1060SF, 6-3V10.60, 6-3V106, 63V1060SF, 6/3V1060SF, 455209, 3V1066, 63V1060SF
Grooves 6

Related Products

Comparable to: QD6/3V10.60, 6 3V 1060 SF, 63V1060SF, 6-3V10.60-SF SHEAVE, 3V1066, 63V10.6, 3V10.6-6-SF, 6/3V1060SF, 6-3V10.60, 6-3V106, 63V1060SF, 6/3V1060SF, 455209, 3V1066, 63V1060SF
