63V475SK, V-Belt Pulley

63V475SK

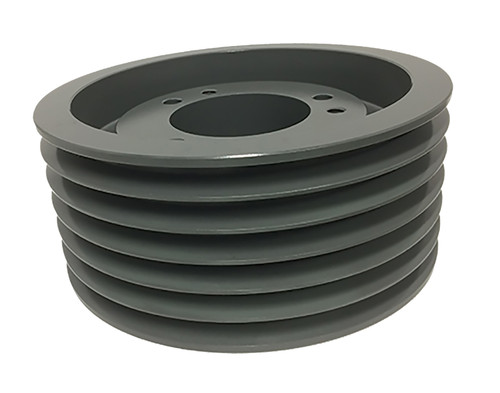

63V475SK, V-Belt Pulley, Cast Iron

Learn more about 63V475SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	63V475SK
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	4.700
Outside Diameter (in)	4.750
Face Width (in)	2.719
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
E (in)	0.6562
L (in)	1.9375
M (in)	1.4375
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	6.00
Part Number Cross Reference	QD6/3V4.75, 6 3V 475 SK, 63V475SK, 3V4.75-6-SK PULLEY, 20180598, 6-3V4.75-SK SHEAVE, 3V4756, 63V4.75, 3V4.75-6-SK, 6/3V475SK, 6-3V4.75, 6-3V47, 63V475SK, 6/3V475SK, 455201, 3V4756, 63V475SK
Grooves	6
