63V690SK, V-Belt Pulley

63V690SK, 3V696, 6-3V6.9, 6/3V690SK

63V690SK

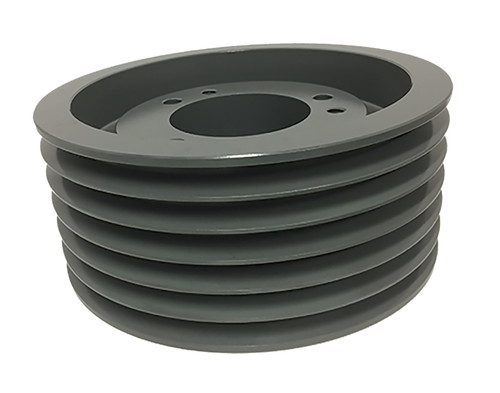

63V690SK, V-Belt Pulley, Cast Iron

Learn more about 63V690SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 63V690SK
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 6.850
Outside Diameter (in) 6.900
Face Width (in) 2.719
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
E (in) 0.5312
L (in) 1.9375
M (in) 0.25
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 13.40
Part Number Cross Reference QD6/3V6.90, 6 3V 690 SK, 6-3V690.SK, 63V690SK, 3V6.9-6-SK PULLEY, 20180646, 6-3V6.90-SK SHEAVE, 3V696, 63V6.9, 3V6.9-6-SK, 6/3V690SK, 6-3V6.90, 6-3V69, 63V690SK, 6/3V690SK, 455207, 3V696, 63V690SK
Grooves 6

Related Products

Comparable to: QD6/3V6.90, 6 3V 690 SK, 6-3V690.SK, 63V690SK, 3V6.9-6-SK PULLEY, 20180646, 6-3V6.90-SK SHEAVE, 3V696, 63V6.9, 3V6.9-6-SK, 6/3V690SK, 6-3V6.90, 6-3V69, 63V690SK, 6/3V690SK, 455207, 3V696, 63V690SK
