64-5P25-1610, Timing Pulley

64-5P25-1610

Click to Enlarge

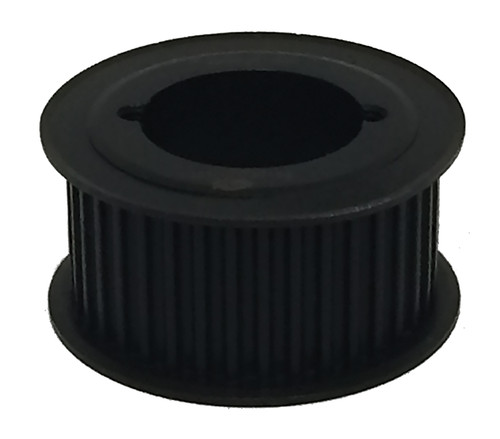

64-5P25-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-5P25-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	64-5P25-1610
Teeth	64
Tooth Style	5P
For Belt Width (mm)	25.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.965
Flange Diameter (in)	4.170
Face Width (in)	1.280
Overall Length (in)	1.280
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.100
Unit System	Inch
Bushing	1610
P.D. (mm)	102.00
O.D. (mm)	100.70
MOQ	1
Weight (lb)	2.38
Part Number Cross Reference	P64-5MGT-25, P64-5M-25-1610 HT250 SPKT, 64-5P25-1610, 112491, 64-5P25-1610
