65V2120F, V-Belt Pulley

65V2120F, 5V21.2-6-F, 20180771, 5V2126, 6-5V21.2, 6/5V2120F

Product Details for 65V2120F

Comparable to: QD6/5V21.20, 78746212, 6 5V 2120 F, 6-5V2120.F, 65V2120F, 5V21.2-6-F, 20180771, 6/5V21.2–F, 5V2126, 65V21.2, 6/5V2120F, 6-5V21.2, 455386

Click to Enlarge

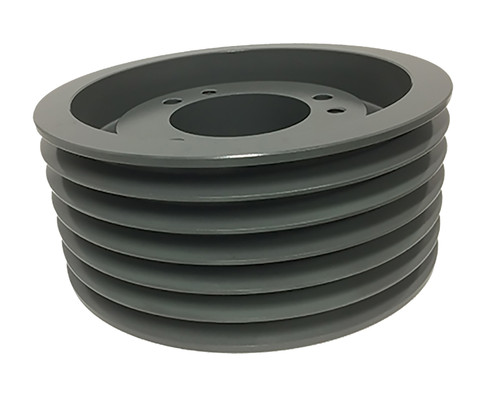

65V2120F, V-Belt Pulley, Cast Iron

Learn more about 65V2120F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 65V2120F
Type D3
Material Cast Iron
Bore Type QD
Bore (in) F
Pitch Diameter (in) 21.100
Outside Diameter (in) 21.200
Face Width (in) 4.438
Min. Bore (in) 1.000
Unit System Inch
Bushing F
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 96.00
Part Number Cross Reference QD6/5V21.20, 78746212, 6 5V 2120 F, 6-5V2120.F, 65V2120F, 5V21.2-6-F, 20180771, 6/5V21.2–F, 5V2126, 65V21.2, 6/5V2120F, 6-5V21.2, 455386
Grooves 6
