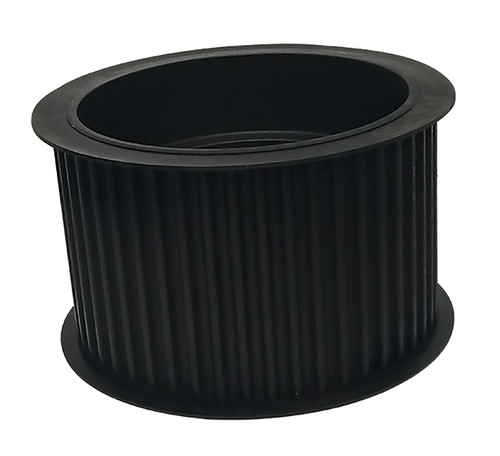

67-14MX90-4030, Timing Pulley

67-14MX90-4030 - Cast Iron Powerhouse® MX Pulleys

Product Details for 67-14MX90-4030

Comparable to: 67-14MX90-4030, 14MX-67S-90, B14MCS-67-

67-14MX90-4030, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 67-14MX90-4030 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 67-14MX90-4030
Teeth 67
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 4030
Pitch Diameter (in) 11.755
Outside Diameter (in) 11.645
Flange Diameter (in) 12.500
Face Width (in) 4.203
Overall Length (in) 4.203
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Bushing 4030
Max. Bore (in) 4.4375
Weight (lb) 71.00
Part Number Cross Reference 67-14MX90-4030, 14MX-67S-90, B14MCS-67-
