67-8MX21-2517, Timing Pulley

67-8MX21-2517

Click to Enlarge

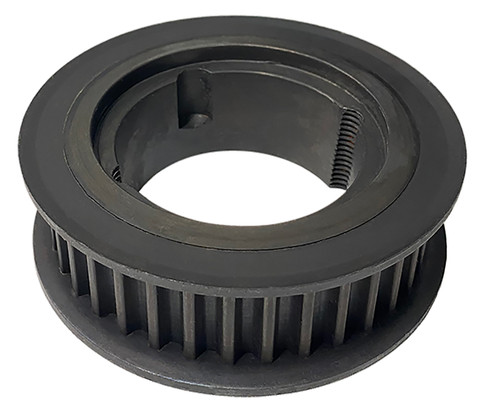

67-8MX21-2517, Timing Pulley, Cast Iron, Black Oxide

Learn more about 67-8MX21-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	67-8MX21-2517
Teeth	67
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	C1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	6.717
Outside Diameter (in)	6.654
Flange Diameter (in)	6.875
Face Width (in)	1.203
Overall Length (in)	1.750
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.960
Unit System	Inch
Bushing	2517
P.D. (mm)	171.00
O.D. (mm)	169.00
MOQ	1
Weight (lb)	6.70
Part Number Cross Reference	8MX-67S-21, 8MX67S21-2517, B8MCS-67-21, 67G-8M-21-2517, 20839758, 8MX-67S-21-2517 HT500 SPKT, 8MPC67S21, GTR-67G-8M-21, GTR-67G-8M-21, 67-8MX21-2517, 481941, 67-8MX21-2517
