68-2P06-6A3, Timing Pulley

68-2P06-6A3 - Aluminum Powerhouse® Pulleys

Product Details for 68-2P06-6A3

Comparable to: A 6A51-068NF0608, A6A51-068NF0608, 2MR-68S-06, 78426023, 6PA3H6-68

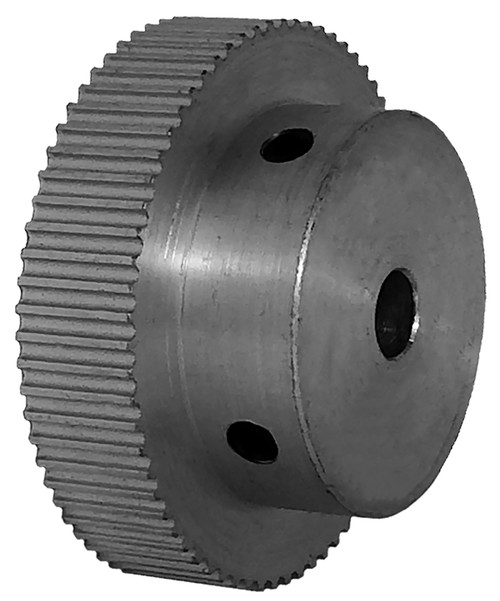

Click to Enlarge

68-2P06-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 68-2P06-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 68-2P06-6A3
Teeth 68
Tooth Style 2P
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.704
Outside Diameter (in) 1.684
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.185
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A51-068NF0608, A6A51-068NF0608, 2MR-68S-06, 78426023, 6PA3H6-68
Set Screw Quantity 2
