68-5MX15-1610, Timing Pulley

68-5MX15-1610 - Cast Iron Powerhouse® MX Pulleys

Product Details for 68-5MX15-1610

Comparable to: 68-5MX15-1610

Click to Enlarge

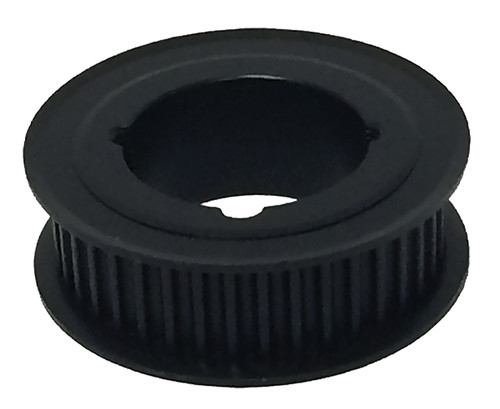

68-5MX15-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 68-5MX15-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 68-5MX15-1610
Teeth 68
Tooth Style 5MX
For Belt Width (mm) 15
Type B1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 4.261
Outside Diameter (in) 4.216
Flange Diameter (in) 4.520
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 2.10
Part Number Cross Reference 68-5MX15-1610
