6B200E, V-Belt Pulley

6B200E, 20.0-6B-E, 20179138, 2006B, 6B200

6B200E

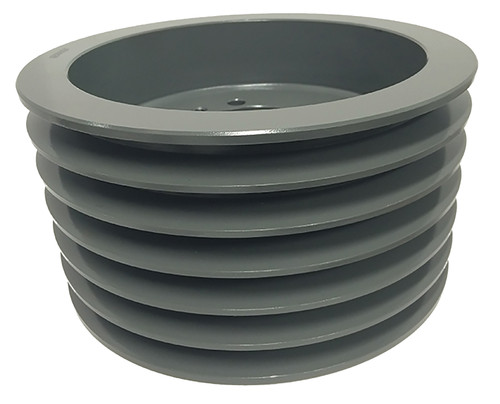

6B200E, V-Belt Pulley, Cast Iron

Learn more about 6B200E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B200E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Outside Diameter (in) 20.350
Face Width (in) 4.750
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Pitch Dia. "A" 19.600
Pitch Dia. "B" 20.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 74.00
Part Number Cross Reference QD6A19.8/B20.0, 6B200.E, 6B200E, 20.0-6B-E, 20179138, 6B200-E SHEAVE, 2006B, 6B20.0, 20.0-6B-E, 6/B2000E, 6B200, 6BQ200, 6B200E, 6B200E, 455737, 6B200E
Grooves 6

Related Products

Comparable to: QD6A19.8/B20.0, 6B200.E, 6B200E, 20.0-6B-E, 20179138, 6B200-E SHEAVE, 2006B, 6B20.0, 20.0-6B-E, 6/B2000E, 6B200, 6BQ200, 6B200E, 6B200E, 455737, 6B200E
