6B46SD, V-Belt Pulley

6B46SD, 4.6-6B-SD, 20179278, 466B, 6B46

Product Details for 6B46SD

Comparable to: QD6A4.4/B4.6, 6B46.SD, 6B46SD, 4.6-6B-SD, 20179278, 466B, 6B4.6, 6/B460SD, 6B46, 6BQ46

Click to Enlarge

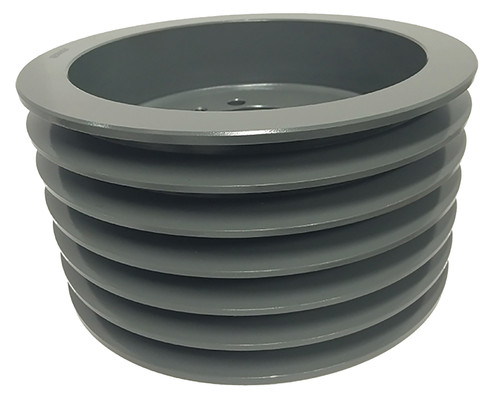

6B46SD, V-Belt Pulley, Cast Iron

Learn more about 6B46SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B46SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 4.950
Face Width (in) 4.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
Max. Bore (in) 2.000
MOQ 1
Pitch Dia. "A" 4.200
Pitch Dia. "B" 4.600
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 10.10
Part Number Cross Reference QD6A4.4/B4.6, 6B46.SD, 6B46SD, 4.6-6B-SD, 20179278, 466B, 6B4.6, 6/B460SD, 6B46, 6BQ46
Grooves 6
