6B50SD, V-Belt Pulley

6B50SD, 5.0-6B-SD, 20179313, 506B, 6B50

6B50SD

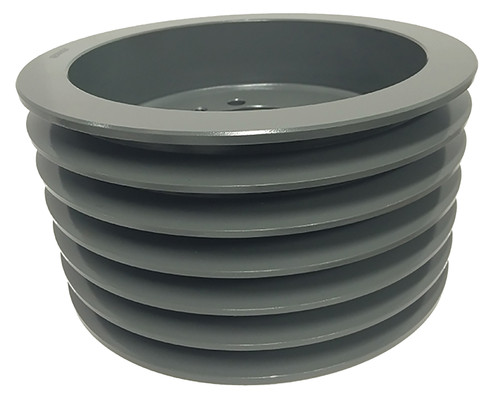

6B50SD, V-Belt Pulley, Cast Iron

Learn more about 6B50SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 6B50SD
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SD Bushing
Outside Diameter (in) 5.350
Face Width (in) 4.750
Min. Bore (in) 0.5
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 4.600
Pitch Dia. "B" 5.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 11.00
Part Number Cross Reference QD6A4.8/B5.0, 6B50.SD, 6B50SD, 5.0-6B-SD, 20179313, 6B50-SD SHEAVE, 506B, 6B5.0, 5.0-6B-SD, 6/B500SD, 6B50, 6BQ50, 6B50SD, 6B50SD, 455716, 6B50SD
Grooves 6

Related Products

Comparable to: QD6A4.8/B5.0, 6B50.SD, 6B50SD, 5.0-6B-SD, 20179313, 6B50-SD SHEAVE, 506B, 6B5.0, 5.0-6B-SD, 6/B500SD, 6B50, 6BQ50, 6B50SD, 6B50SD, 455716, 6B50SD
