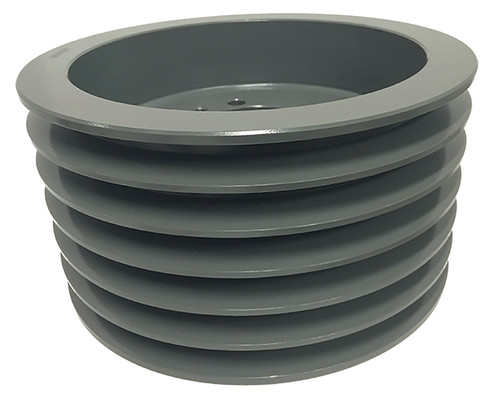

6B52SD, V-Belt Pulley

6B52SD

6B52SD, V-Belt Pulley, Cast Iron

Learn more about 6B52SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B52SD
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	5.550
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	4.800
Pitch Dia. "B"	5.200
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	12.00
Part Number Cross Reference	QD6A5.0/B5.2, 6B52.SD, 6B52SD, 5.2-6B-SD, 20179320, 6B52-SD SHEAVE, 526B, 6B5.2, 5.2-6B-SD, 6/B520SD, 6B52, 6BQ52, 6B52SD, 6B52SD, 455717, 6B52SD
Grooves	6
