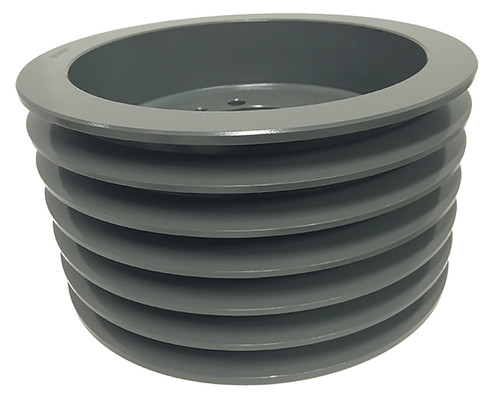

6B56SK, V-Belt Pulley

6B56SK

6B56SK, V-Belt Pulley, Cast Iron

Learn more about 6B56SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	6B56SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	5.950
Face Width (in)	4.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	5.200
Pitch Dia. "B"	5.600
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	14.00
Part Number Cross Reference	QD6A5.4/B5.6, 6B56.SK, 6B56SK, 5.6-6B-SK, 20179339, 6B56-SK SHEAVE, 566B, 6B5.6, 5.6-6B-SK, 6/B560SK, 6B56, 6BQ56, 6B56SK, 6B56SK, 455719, 6B56SK
Grooves	6
