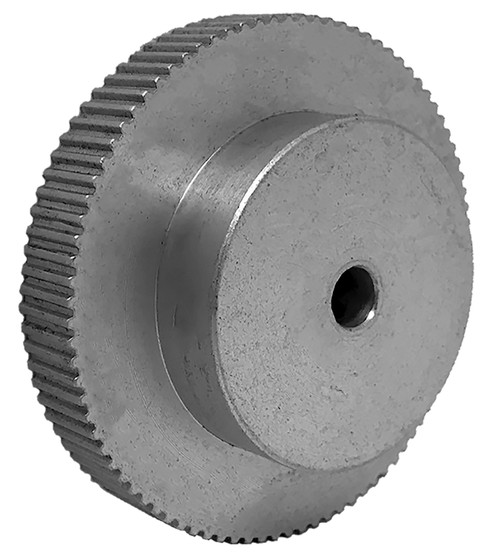

70LT187-6A3, Timing Pulley

70LT187-6A3 - Aluminum Imperial Pitch Pulleys

70LT187-6A3

70LT187-6A3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

70LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 70LT187-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 70LT187-6A3
Teeth 70
Tooth Style LT
For Belt Width (in) 0.1875
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.818
Outside Diameter (in) 1.798
Face Width (in) 0.750
Overall Length (in) 1.150
Hub Diameter (in) 1.150
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 46.00
O.D. (mm) 45.70
MOQ 1
Weight (lb) 0.13
Part Number Cross Reference A 6A6-70NF01808, A6A6-70NF01808, 70M187-2A X 1/4, 70LT187-6A3
Set Screw Quantity 2
