72-14P115-4545, Timing Pulley

72-14P115-4545 - Cast Iron Powerhouse® Pulleys

Product Details for 72-14P115-4545

Comparable to: P72-14MGT-115, 2764306, B7214M115TL, P72-14M-115-4545, 20182859

Click to Enlarge

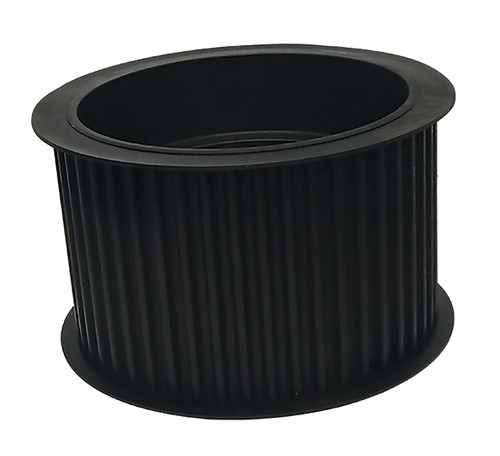

72-14P115-4545, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-14P115-4545 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-14P115-4545
Teeth 72
Tooth Style 14P
For Belt Width (mm) 115
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 4545
Pitch Diameter (in) 12.632
Outside Diameter (in) 12.522
Flange Diameter (in) 13.187
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 1.9375
Pulley Belt Width (in) 4.930
Unit System Inch
Bushing 4545
MOQ 1
Weight (lb) 112.20
Part Number Cross Reference P72-14MGT-115, 2764306, B7214M115TL, P72-14M-115-4545, 20182859
