72-14P55-3020, Timing Pulley

72-14P55-3020 - Cast Iron Powerhouse® Pulleys

Product Details for 72-14P55-3020

Comparable to: P72-14MGT-55, 2763860, B7214M55TL, P72-14M-55-3020, 20182861

Click to Enlarge

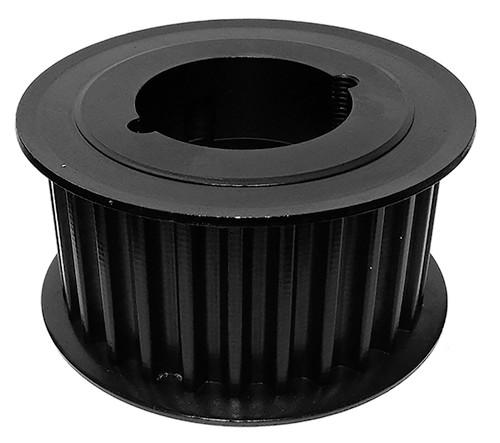

72-14P55-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-14P55-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-14P55-3020
Teeth 72
Tooth Style 14P
For Belt Width (mm) 55
Type D1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 12.632
Outside Diameter (in) 12.522
Flange Diameter (in) 13.187
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Pulley Belt Width (in) 2.430
Unit System Inch
Bushing 3020
MOQ 1
Weight (lb) 47.51
Part Number Cross Reference P72-14MGT-55, 2763860, B7214M55TL, P72-14M-55-3020, 20182861
