72-5M15-6A5, Timing Pulley

72-5M15-6A5 - Aluminum Powerhouse®HTD® Pulleys

72-5M15-6A5

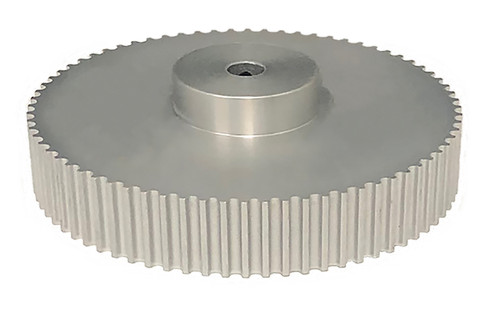

Click to Enlarge

72-5M15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72-5M15-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-5M15-6A5
Teeth 72
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 4.511
Outside Diameter (in) 4.466
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 115.00
O.D. (mm) 113.40
MOQ 1
Weight (lb) 0.75
Part Number Cross Reference A 6A25-072NF1512, A6A25-072NF1512, P72-5M-15AL, 72M5-L015-6, 72-5M-09 X 3/8, P72-5M-15, 72-5M15-6A5, 72-5M15-6A5
Set Screw Quantity 2

Comparable to: A 6A25-072NF1512, A6A25-072NF1512, P72-5M-15AL, 72M5-L015-6, 72-5M-09 X 3/8, P72-5M-15, 72-5M15-6A5, 72-5M15-6A5
