72-5P15-1610, Timing Pulley

72-5P15-1610 - Cast Iron Powerhouse® Pulleys

Product Details for 72-5P15-1610

Comparable to: P72-5MGT-15, 77091072

Click to Enlarge

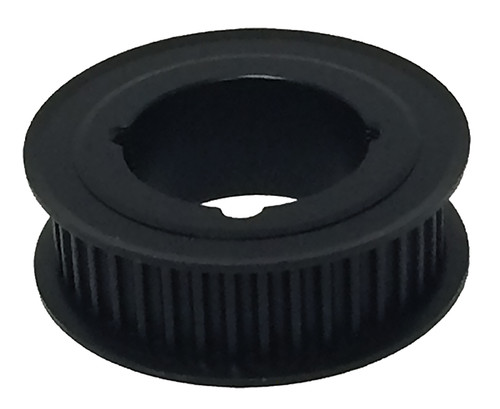

72-5P15-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 72-5P15-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72-5P15-1610
Teeth 72
Tooth Style 5P
For Belt Width (mm) 15
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 4.511
Outside Diameter (in) 4.466
Flange Diameter (in) 4.670
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 2.80
Part Number Cross Reference P72-5MGT-15, 77091072
