72LH050, Timing Pulley

72LH050 - Cast Iron Imperial Pitch Pulleys

72LH050

Click to Enlarge

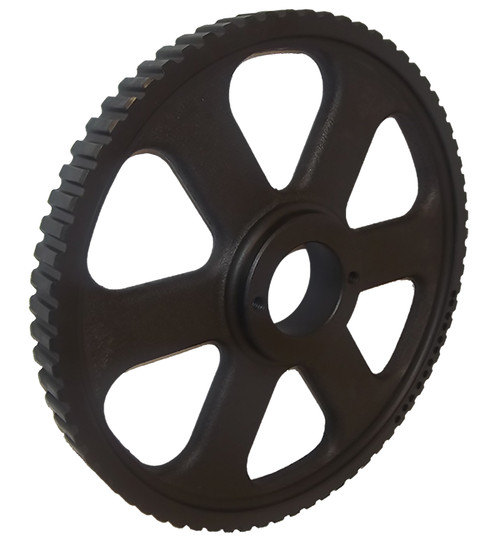

72LH050, Timing Pulley, Cast Iron

Learn more about 72LH050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72LH050
Teeth 72
Tooth Style L
For Belt Width (in) 0.5000
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 8.594
Outside Diameter (in) 8.564
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 218.00
O.D. (mm) 217.50
MOQ 1
Weight (lb) 5.65
Part Number Cross Reference 72LH050, 72LH050, 72LH050
