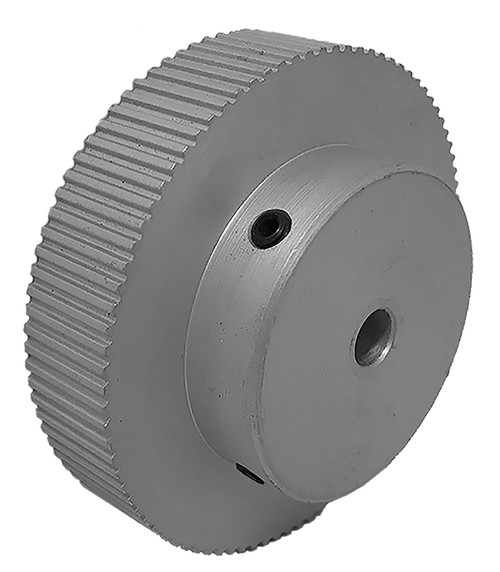

72LT312-6A5, Timing Pulley

72LT312-6A5 - Aluminum Imperial Pitch Pulleys

72LT312-6A5

72LT312-6A5 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

72LT312-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72LT312-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72LT312-6A5
Teeth 72
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.870
Outside Diameter (in) 1.850
Face Width (in) 0.875
Overall Length (in) 1.202
Hub Diameter (in) 1.202
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 47.00
MOQ 1
Weight (lb) 0.16
Part Number Cross Reference A 6A6-72NF03112, A6A6-72NF03112, 72M312-2A X 3/8, 72LT312-6A5
Set Screw Quantity 2
