72MP025-6A3, Timing Pulley

72MP025-6A3

Click to Enlarge

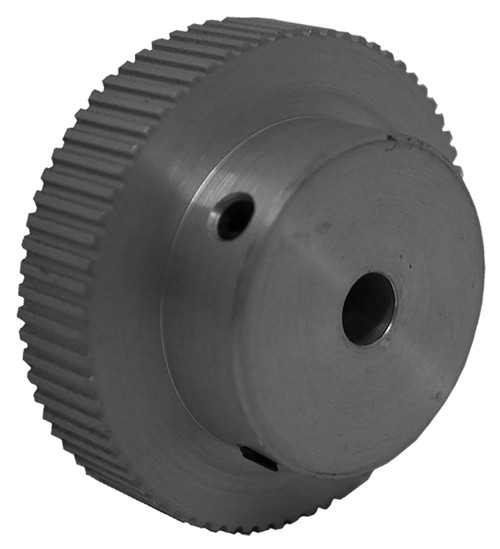

72MP025-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72MP025-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	72MP025-6A3
Teeth	72
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.833
Outside Diameter (in)	1.813
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	1.195
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.375
Unit System	Inch
P.D. (mm)	47.00
O.D. (mm)	46.10
MOQ	1
Weight (lb)	0.14
Part Number Cross Reference	A 6A16-072NF2508, A6A16-072NF2508, PB72MXL025, 72MP-025-1/4-6A, PT072A08L04N, TP7A4H4-72, 72MXL025-2A X 1/4, 72MP025-6A3, 72MP025-6A3
Set Screw Quantity	2
