72MP037M6A6, Timing Pulley

72MP037M6A6 - Aluminum Metric Pulleys

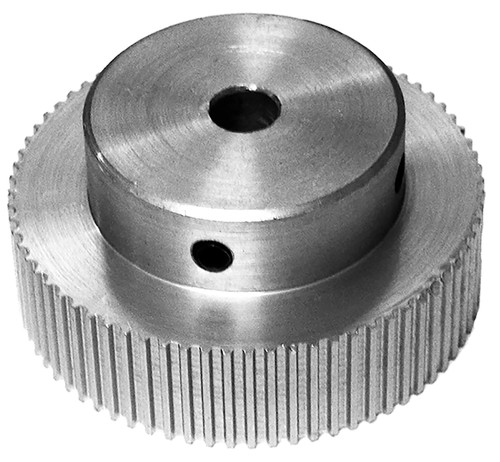

72MP037M6A6

Click to Enlarge

72MP037M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72MP037M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 72MP037M6A6
Teeth 72
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Pitch Diameter (in) 1.833
Outside Diameter (in) 1.813
Face Width (in) 0.500
Pulley Belt Width (mm) 12.70
Unit System Metric
P.D. (mm) 47.00
O.D. (mm) 46.10
Overall Length (mm) 22.20
Hub Diameter (mm) 30.40
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference A 6A16M072NF9508, A6A16M072NF9508, 72MP037M6A6
Set Screw Quantity 2
