80-14P85-3535, Timing Pulley

80-14P85-3535

Click to Enlarge

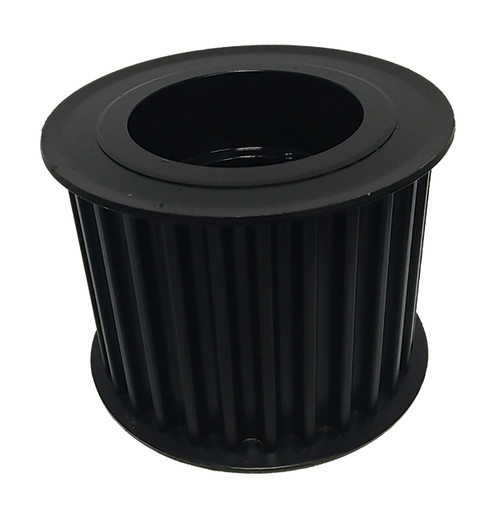

80-14P85-3535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-14P85-3535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	80-14P85-3535
Teeth	80
Tooth Style	14P
For Belt Width (mm)	85.00
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3535 Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.926
Flange Diameter (in)	14.625
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1.1875
Pulley Belt Width (in)	3.680
Unit System	Inch
Bushing	3535
P.D. (mm)	356.00
O.D. (mm)	353.70
MOQ	1
Weight (lb)	61.74
Part Number Cross Reference	P80-14MGT-85, B8014M85TL, P80-14M-85-3535, 20182870, P80-14M-85-3535 HT250 SPKT, P8014M85TL, 80-14P85-3535, 112960, 80-14P85-3535
