80-3P15-6A4, Timing Pulley

80-3P15-6A4 - Aluminum Powerhouse® Pulleys

80-3P15-6A4

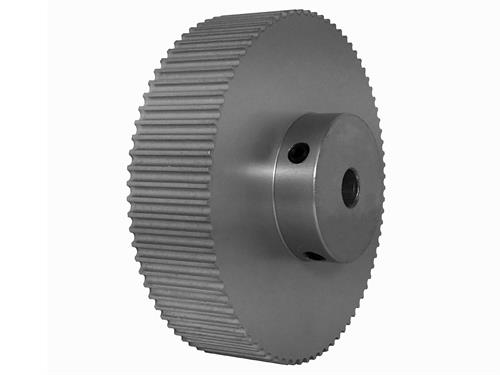

Click to Enlarge

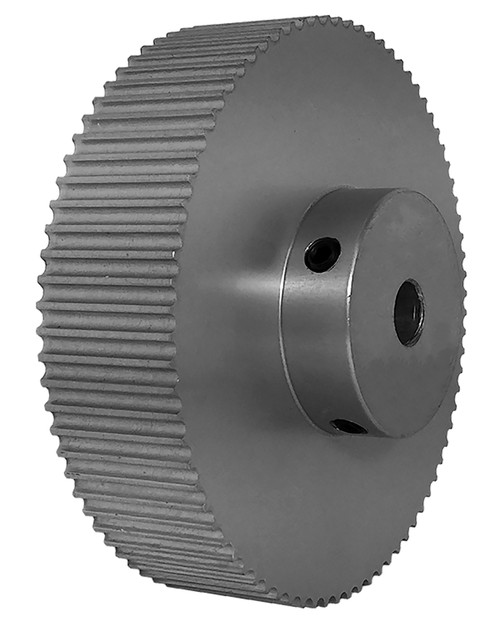

80-3P15-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80-3P15-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 80-3P15-6A4
Teeth 80
Tooth Style 3P
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.978
Face Width (in) 0.736
Overall Length (in) 1.111
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 76.00
O.D. (mm) 75.60
MOQ 1
Weight (lb) 0.56
Part Number Cross Reference A 6A53-080NF1510, A6A53-080NF1510, 3MR-80S-15, TP3A3H15-80, 80-3GT15-2A X 5/16, 80-3P15-6A4, 21071096, 80-3P15-6A4
Set Screw Quantity 2

Comparable to: A 6A53-080NF1510, A6A53-080NF1510, 3MR-80S-15, TP3A3H15-80, 80-3GT15-2A X 5/16, 80-3P15-6A4, 21071096, 80-3P15-6A4

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
