80-8P12-1610 Powerhouse™ Pulleys

80-8P12-1610, P80-8MGT-12, 77081280

Product Details for 80-8P12-1610

Comparable to: 80-8P12-1610, P80-8MGT-12, 77081280

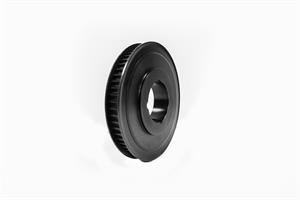

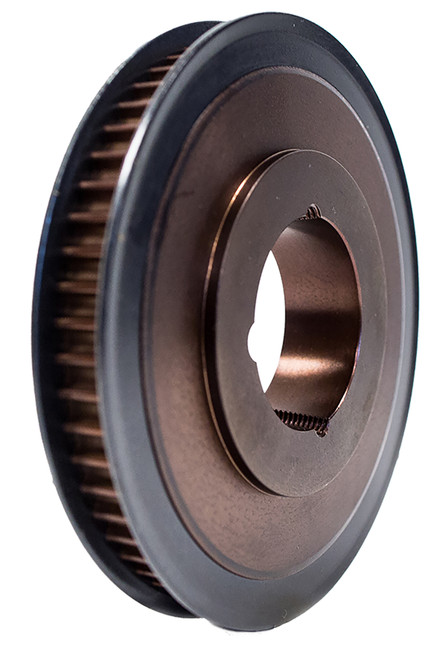

80-8P12-1610, Timing Pulley, Powerhouse, 1610 Bushing, Cast Iron

Specifications

Product Number 80-8P12-1610
Teeth 80
Tooth Style GT 8mm
For Belt Width (mm) 12.000
Type B1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 8.020
Outside Diameter (in) 7.966
Flange Diameter (in) 8.386
Face Width (in) 0.750
Overall Length (in) 1.000
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 1610
Weight (lb) 0.50
List Price (1-9 Qty.) (USD) 75.65
Discount Price (10-24 Qty.) (USD) 66.19
Discount Price (25-49 Qty.) (USD) 58.63
Part Number Cross Reference 80-8P12-1610, P80-8MGT-12, 77081280

Documentation

Download Catalog 2015_BBMAN_CATALOG_140.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 80-8P12-1610_REACH_cert
RoHS Certification 80-8P12-1610_RoHS_cert
