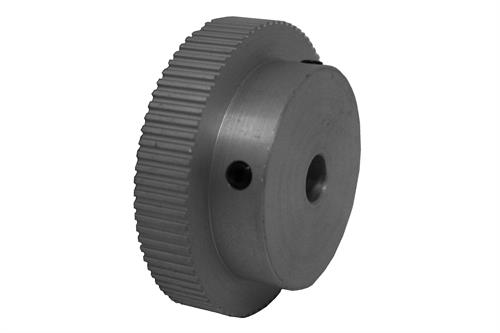

80MP025-6A4, Timing Pulley

80MP025-6A4

Click to Enlarge

80MP025-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80MP025-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	80MP025-6A4
Teeth	80
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	2.037
Outside Diameter (in)	2.017
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	1.500
Min. Bore (in)	0.3125
Pulley Belt Width (in)	0.375
Unit System	Inch
P.D. (mm)	52.00
O.D. (mm)	51.20
MOQ	1
Weight (lb)	0.21
Part Number Cross Reference	A 6A16-080NF2510, A6A16-080NF2510, PB80MXL025, 80MP-025-5/16-6A, PT080A10L04N, TP7A5H4-80, 80MXL025-2A X 5/16, 80MP025-6A4, 80MP025-6A4
Set Screw Quantity	2
