84LT312-6A3, Timing Pulley

84LT312-6A3 - Aluminum Imperial Pitch Pulleys

Product Details for 84LT312-6A3

Comparable to: A 6A6-84NF03108, A6A6-84NF03108, 84M312-2A X 1/4

Click to Enlarge

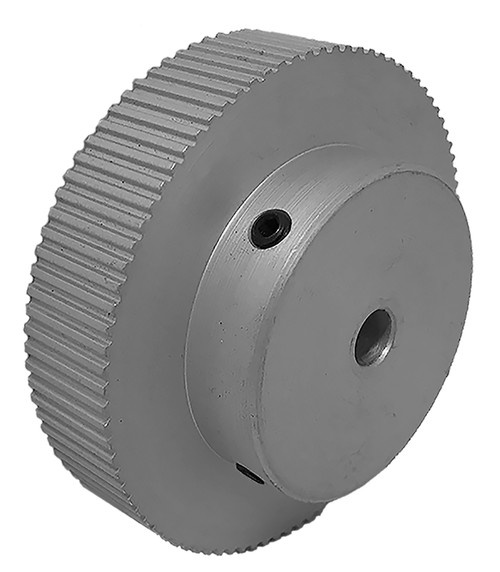

84LT312-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 84LT312-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 84LT312-6A3
Teeth 84
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.184
Outside Diameter (in) 2.170
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.22
Part Number Cross Reference A 6A6-84NF03108, A6A6-84NF03108, 84M312-2A X 1/4
Set Screw Quantity 2
