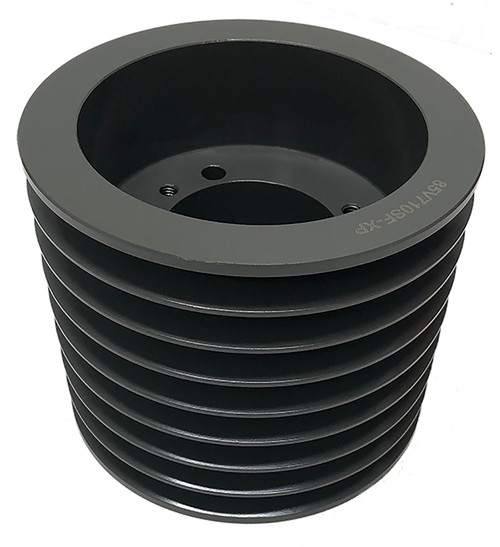

85V750SF, V-Belt Pulley

85V750SF

85V750SF, V-Belt Pulley, Cast Iron

Learn more about 85V750SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	85V750SF
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	7.400
Outside Diameter (in)	7.500
Face Width (in)	5.813
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
E (in)	1.2812
L (in)	2.0625
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	28.20
Part Number Cross Reference	QD8/5V7.50, 8 5V 750 SF, 8-5V750.SF, 85V750SF, 5V7.5-8-SF PULLEY, 20180877, 8-5V7.50-SF SHEAVE, 5V758, 85V7.5, 5V7.5-8-SF, 8/5V750SF, 8-5V7.50, 85V750SF, 8/5V750SF, 455394, 85V750SF
Grooves	8
