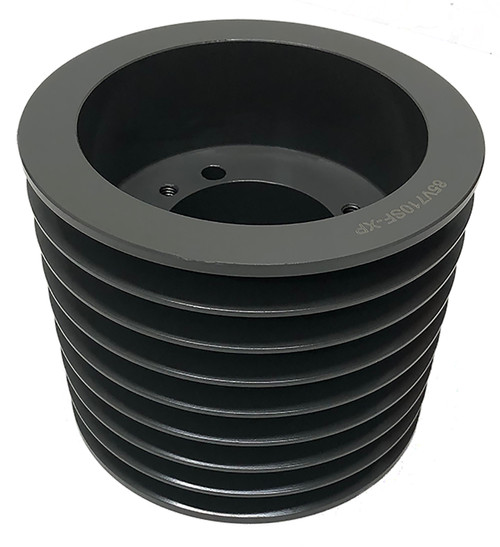

85V850E, V-Belt Pulley

85V850E

85V850E, V-Belt Pulley, Cast Iron

Learn more about 85V850E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	85V850E
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	8.400
Outside Diameter (in)	8.500
Face Width (in)	5.813
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
E (in)	1.3437
L (in)	2.75
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	37.20
Part Number Cross Reference	QD8/5V8.50, 8 5V 850 E, 8-5V850.E, 85V850E, 5V8.5-8-E PULLEY, 20180894, 8-5V8.50-E SHEAVE, 5V858, 85V8.5, 5V8.5-8-E, 8/5V850E, 8-5V8.50, 85V850E, 8/5V850E, 455396, 85V850E
Grooves	8
