BK25x1, V-Belt Pulley

BK25x1

BK25x1

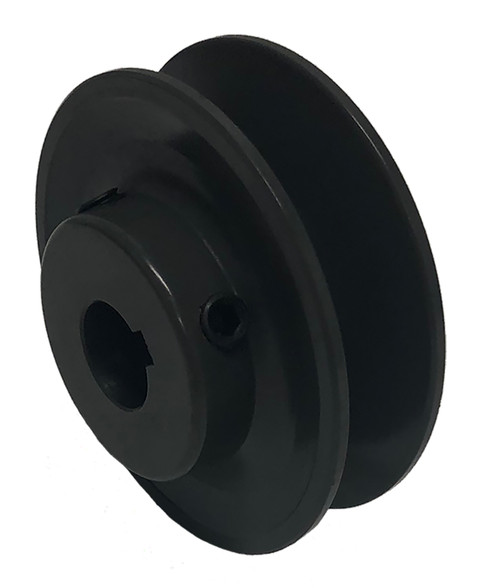

BK25x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK25x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK25x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 2.500
Face Width (in) 0.813
Overall Length (in) 1.219
Hub Diameter (in) 1.560
Min. Bore (in) 0.500
Unit System Inch
MOQ 1
Pitch Dia. "A" 1.900
Pitch Dia. "B" 2.300
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 0.70
Part Number Cross Reference BK25 1, BK25x1, 121695, BK251, BK25-1, MB25x1 , BK25-1, BK25-1, BK25x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: BK25 1, BK25x1, 121695, BK251, BK25-1, MB25x1 , BK25-1, BK25-1, BK25x1
