BK40H, V-Belt Pulley

BK40H, BK40-QT, 20179611, MBL39

Product Details for BK40H

Comparable to: BK40H, BK40-QT, 20179611, BK40, 00754267, MBL40, BK40QT

Click to Enlarge

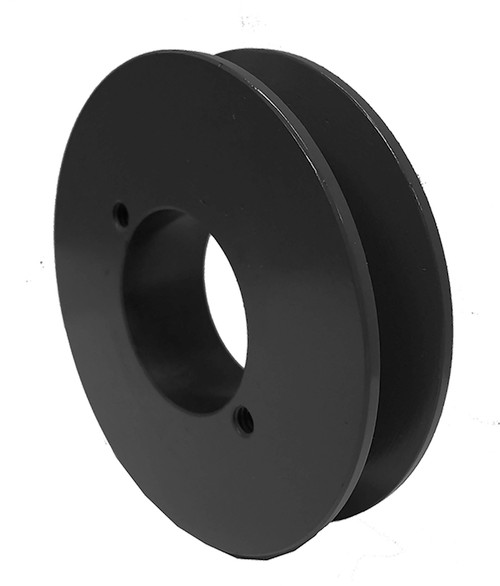

BK40H, V-Belt Pulley, Cast Iron

Learn more about BK40H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK40H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 3.950
Face Width (in) 0.875
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 3.200
Pitch Dia. "B" 3.600
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 1.40
Part Number Cross Reference BK40H, BK40-QT, 20179611, BK40, 00754267, MBL40, BK40QT
Grooves 1
