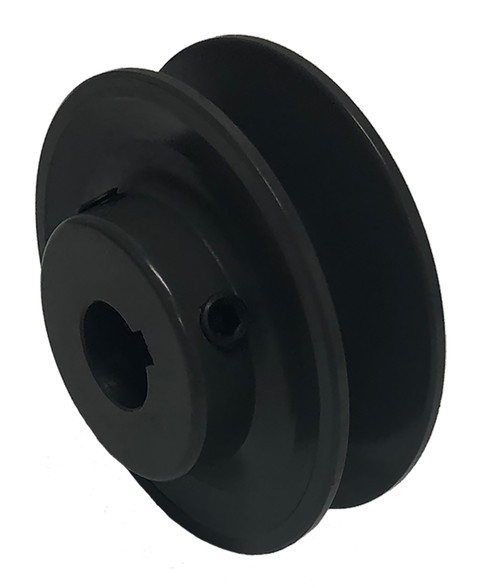

BK70x1, V-Belt Pulley

BK70x1

BK70x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK70x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	BK70x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	6.750
Face Width (in)	0.875
Overall Length (in)	1.531
Hub Diameter (in)	2.375
Min. Bore (in)	0.625
Unit System	Inch
MOQ	1
Pitch Dia. "A"	6.000
Pitch Dia. "B"	6.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	4.50
Part Number Cross Reference	BK70 1, BK70x1, BK70-1 PULLEY, 20180330, BK70 X 1 SHEAVE, BK701, BK70-1, MB68X1, BK70-1, BK70x1, BK70-1, MB68X1, BK70x1
Grooves	1
Set Screw Quantity	1
