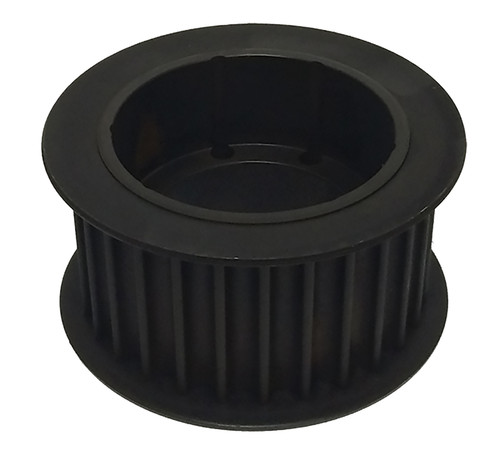

F31-14M55-SK, Timing Pulley

F31-14M55-SK - Ductile Iron  or Cast Iron Powerhouse®HTD® Pulleys

Product Details for F31-14M55-SK

Comparable to: F31-14MGT-55-SK, 77115531

Click to Enlarge

F31-14M55-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide,

Learn more about F31-14M55-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F31-14M55-SK
Teeth 31
Tooth Style HTD 14mm
For Belt Width (mm) 55
Type A1F
Material Ductile Iron or Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.439
Outside Diameter (in) 5.329
Flange Diameter (in) 6.124
Face Width (in) 2.750
Overall Length (in) 2.750
Hub Diameter (in) 6.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
MOQ 1
Weight (lb) 6.50
Part Number Cross Reference F31-14MGT-55-SK, 77115531
