F31-14MX37-SK, Timing Pulley

F31-14MX37-SK - Ductile Iron or Cast Iron Powerhouse® MX Pulleys

Product Details for F31-14MX37-SK

Comparable to: F14M-31S-37, 77279731, 31G-14M-37-SK

Click to Enlarge

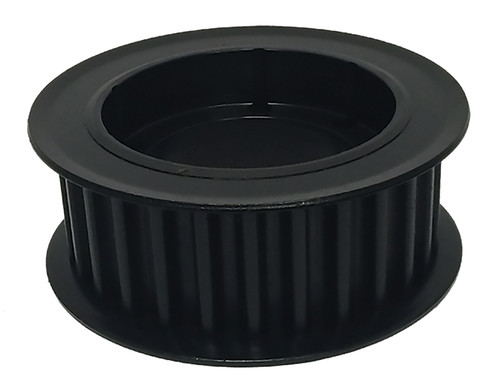

F31-14MX37-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide,

B&B Manufacturing carries F31-14MX37-SK in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F31-14MX37-SK
Teeth 31
Tooth Style 14MX
For Belt Width (mm) 37
Type A1F
Material Ductile Iron or Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.439
Outside Diameter (in) 5.329
Flange Diameter (in) 6.124
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 6.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
MOQ 1
Weight (lb) 6.51
Part Number Cross Reference F14M-31S-37, 77279731, 31G-14M-37-SK
