F32-14MX20-SK, Timing Pulley

F32-14MX20-SK

Click to Enlarge

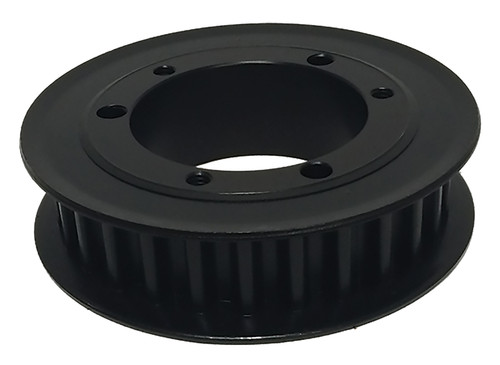

F32-14MX20-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F32-14MX20-SK to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F32-14MX20-SK
Teeth	32
Tooth Style	14MX
For Belt Width (mm)	20.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.614
Outside Diameter (in)	5.504
Flange Diameter (in)	6.124
Face Width (in)	1.359
Overall Length (in)	1.359
Hub Diameter (in)	5.900
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	143.00
O.D. (mm)	139.80
A (in)	4.190
C (in)	1.040
D (in)	1.360
F (in)	1.36
M (in)	0.11
MOQ	1
Weight (lb)	5.78
Part Number Cross Reference	F14M-32S-20, F14MX32S20-SK, 32G-14M-20-SK AXIAL FAN SPROCKET/IDLER, 20337485, F14MX-32S-20 SK FIN FAN, F14MX32S20-SK, F32-14MX20-SK, 482211, F32-14MX20-SK
