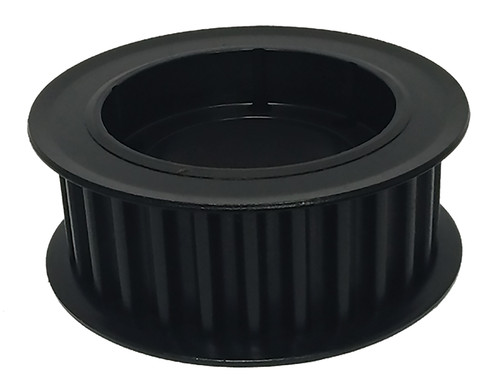

F32-14MX37-SK, Timing Pulley

F32-14MX37-SK - Ductile Iron Powerhouse® MX Pulleys

Product Details for F32-14MX37-SK

Comparable to: F32-14MX37-SK, F14M-32S-

F32-14MX37-SK, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F32-14MX37-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F32-14MX37-SK
Teeth 32
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.504
Flange Diameter (in) 6.124
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 7.100
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Weight (lb) 6.97
Part Number Cross Reference F32-14MX37-SK, F14M-32S-
